EPX100 – Large Outdoor Grease Trap 100ltr

Do you require a minimum 100 litre large outdoor grease trap?  Has your local water provider contacted you and requested you install a minimum size 100ltr grease trap for your commercial kitchen? Cater Kitchen can help!

Cater Kitchen’s range of commercial grade stainless steel and epoxy grease traps can help immediately reduce build up and blocked drains resulting from fats, oils and grease (FOG’s).   Running a food service establishment can be hard enough.

We understand you want to fulfil your obligations and be a responsible user of the public drain system but why pay thousands of pounds when affordable grease traps are massively reduce dangerous FOG’s!  This is exactly why our unique range of commercial grease traps have been designed to be effective and budget-friendly.

100 Litre Large Outdoor Grease Trap Epoxy Specification

• Weatherproof Epoxy coated for indoor / outdoor use
• Satisfies requirement for a minimum 100 litre Grease Trap
• 100 Litre Capacity
• Flow Rate (Litres Per Minute): 95
• Height to Outlet: 275mm
• 50mm (2”) Inlet/Outlet.
• 25kg Grease Capacity
• Suitable For Up To 3 Standard Sink Bowls
• 5 Year Manufacturer Warranty
• Minimise Drain Cleaning Call-Out Charges
• Immediately Improves Wastewater Discharge Quality
• Thick Air Tight Seal – Eliminates Unwanted Odours
• Heavy Duty, Corrosion Free Construction
• Uses Standard Multi-fit Connectors
• Model SKU: EPX100

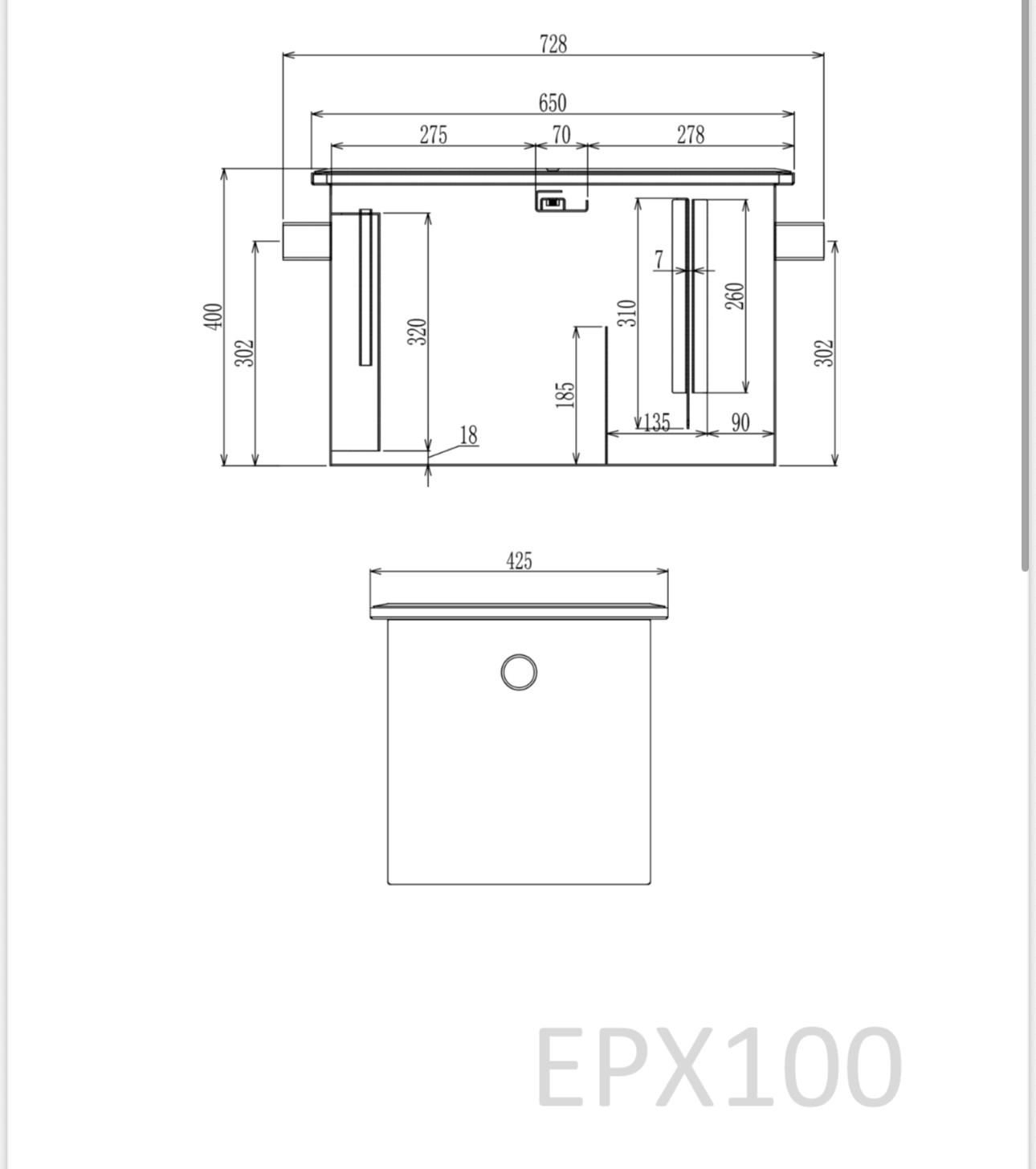

• Size 650 x 425 x 400mm (w x l x h)
• Grease Capacity (kg) 25
• Capacity to Inlet Outlet (L) 100
• Meals Per Day: Up to 200

100ltr Fat Trap Weatherproof

If you have a commercial kitchen with up to three sink bowls and a commercial dishwasher, it’s important that you do not undersize your grease trap. Installing a small grease trap might seem okay, but this can cause big problems if more water enters the trap than is designed. This can result in both backing up and greatly reduced efficacy of your grease trap’s primary function: FOG retention.

Commercial Grease Traps

It is important when sizing your commercial grease trap that is it large enough to allow waste water to remain in the trap for 30 minutes.  This allows natural FOG separation to occur and is important to prevent blockages.  In addition, a grease trap that is too small can quickly back up in to your sink.  Not only will your grease trap become much less efficient, your drainage will greatly reduce.

It is therefore very important to consider what appliances you and flow rates of those items producing wastewater, when correctly sizing your grease trap. As a business owner or somebody responsible for smooth running of a commercial kitchen, the very last thing you want  is to have service interrupted by blockages and backing up through not sizing a grease trap correctly!

Large Outdoor Grease Trap

Many water providers such as Severn Trent Water who supply to Birmingham (and the surrounding Midlands area) and Thames Water who supply many parts of London, are now advising their customer to install a minimum size 100 litre grease traps.  This is to ensure they are not overloaded with the volume of water and will cope with a large catering sink which potentially will release both bowls at the same time.

Underground & Large Outdoor Grease Trap Installation

As suppliers of quality stainless steel kitchen products and commercial grease traps, we are proud to various sizes of gravity-fed, passive grease traps which are designed for under sink installation.  In addition to our stainless steel range, we also now offer high quality outdoor grease traps which can be placed above ground or underground.

Specifically created to withstand the elements our epoxy coated outdoor grease traps offer flexibility of installation where an under sink installation is otherwise not achievable.  These passive grease traps are designed for all food service establishments and Cater Kitchen are actively helping restaurants up and down the UK gain control of their wastewater and FOG management.

Passive Grease Trap

A passive, or gravity-fed grease trap is possible the most cost effective option when considering grease management.  Due to their simplistic design, no power supply is required or expensive filter replacements.  The simple action of water flowing via a downward feed in to the trap is sufficient.  Once in the trap, the continual flow of water in conjunction with directional baffles inside the trap aide the cooling of the water and thus the grease separation process.

The result is an effective grease trap which collects unwanted FOG’s and captures them safely inside the main chamber where it awaits removal. This is by far the least expensive way to manage your waste FOG’s and once purchased, can begin immediately reducing your harmful FOG’s which may enter the public sewer system.

Installation Advice

You should check your trap routinely and periodically then empty accordingly. Particularly in the days and weeks following installation.   It is recommended to consider a local grease trap cleaning contractor who can carry this out for you.  Like under sink grease traps, outdoor and underground grease traps do not have a syphon valve with which to drain off surface FOG’s or empty the collection chamber completely.

Therefore, it is recommended to employ a contractor who has dedicated suction hoses.  Whether you opt for a drainage contractor or decide to clean the grease trap yourself as part of your regular maintenance regime, always remember to dispose of in accordance with your local authority regulations and keep documented evidence.
